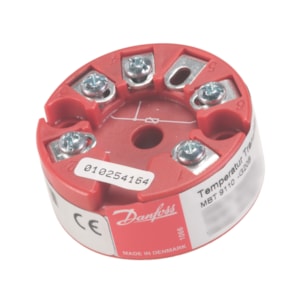

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 9110, 0 °C - 100 °C - C/N 097U0071

Gross weight

0.065 Kilogram

Net weight

0.043 Kilogram

Volume

0.513 Liter

EAN

5702428800778

Type

MBT 9110

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Output 2 wire

Electrical connection size

2 terminals

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion type

Fixed

Number of terminals [pcs]

2 pc

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

a7fb0794-b56c-4e6a-a349-7871abc333d0

SCIP dossier product name

MBT 9110

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

1 pc

Sensor element type

Pt

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [min]

7 V

Temperature range [°C] [max]

850 °C

Temperature range [°C] [min]

-200 °C

Temperature range [°F] [max]

1562 °F

Temperature range [°F] [min]

-328 °F

Thermocouple

N/A

Transmitter setting range [°C] [max]

100 °C

Transmitter setting range [°C] [min]

0 °C

Transmitter setting range [°F] [max]

212 °F

Transmitter setting range [°F] [min]

32 °F

Transmitter type

Galv. isolated

Type designation

MBT 9110-000B-H110

Wires [pcs]

3 pc
