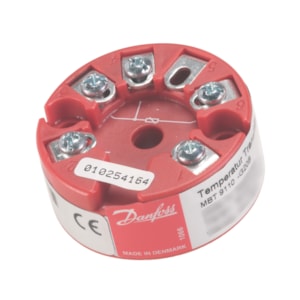

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 9110, 0 °C - 200 °C - C/N 097U0070

Mã sản phẩm: 097U0070

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 9110, 0 °C - 200 °C - C/N 097U0070

Product details

Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
CE evaluated	Yes
China RoHS compliance	Out of scope
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Output 2 wire
Electrical connection size	2 terminals
Enclosure rating IP	IP54
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
In scope of WEEE	Yes
Insertion type	Fixed
Number of terminals [pcs]	2 pc
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Packing format	Multi pack
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	a7fb0794-b56c-4e6a-a349-7871abc333d0
SCIP dossier product name	MBT 9110
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc
Sensor element type	Pt
Supply voltage [V] DC [max]	35 V
Supply voltage [V] DC [min]	7 V
Temperature range [°C] [max]	850 °C
Temperature range [°C] [min]	-200 °C
Temperature range [°F] [max]	1562 °F
Temperature range [°F] [min]	-328 °F
Thermocouple	N/A
Transmitter setting range [°C] [max]	200 °C
Transmitter setting range [°C] [min]	0 °C
Transmitter setting range [°F] [max]	392 °F
Transmitter setting range [°F] [min]	32 °F
Transmitter type	Galv. isolated
Type designation	MBT 9110-000B-H120
Wires [pcs]	3 pc
