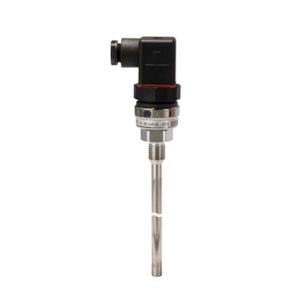

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5560, 200 mm, G,1/4 - C/N 084Z4061

Gross weight

0.194 Kilogram

Net weight

0.142 Kilogram

Volume

0.069 Liter

EAN

5702423224364

Type

MBT 5560

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

No

Insertion length [in]

7.9 in

Insertion length [mm]

200 mm

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/4

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

Quantity per packing format

9 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor element tolerance

< ± 1% FS

Sensor Insert

Fixed

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

10 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

200 °C

Transmitter setting range [°C] [min]

-50 °C

Transmitter setting range [°F] [max]

392 °F

Transmitter setting range [°F] [min]

-58 °F

Transmitter type

Integrated

Type designation

MBT 5560-0000-0200-10-420
