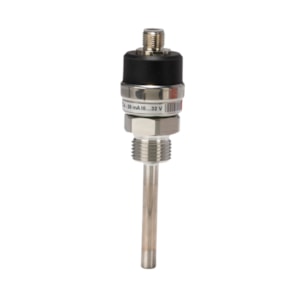

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5560, 100 mm, G,1/4 - C/N 097U0210

Gross weight

0.149 Kilogram

Net weight

0.101 Kilogram

Volume

0.665 Liter

EAN

5702424539139

Type

MBT 5560

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

No

Insertion length [in]

3.94 in

Insertion length [mm]

100 mm

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/4

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

13 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element tolerance

< ± 1% FS

Sensor element type

Pt

Sensor Insert

Fixed

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

10 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

100 °C

Transmitter setting range [°C] [min]

0 °C

Transmitter setting range [°F] [max]

212 °F

Transmitter setting range [°F] [min]

32 °F

Transmitter type

Integrated

Type designation

MBT 5560-0000-0100-60-110
