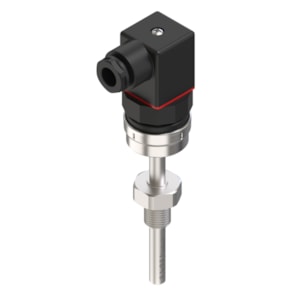

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5560, 200 mm, G,1/4 - C/N 084Z4194

Gross weight

0.199 Kilogram

Net weight

0.15 Kilogram

Volume

0.775 Liter

EAN

5702428949552

Type

MBT 5560

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Extension length [in]

1.3 in

Extension length [mm]

33 mm

In scope of WEEE

No

Insertion length [in]

7.9 in

Insertion length [mm]

200 mm

Insertion type

Fixed

Output signal

Ratio metric

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/4

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

Quantity per packing format

9 pc

Ratiometric [V] [max]

4.75 V

Ratiometric [V] [min]

0.25 V

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor element tolerance

< ± 1% FS

Sensor Insert

Fixed

Supply voltage [V] DC

5 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

150 °C

Transmitter setting range [°C] [min]

-50 °C

Transmitter setting range [°F] [max]

302 °F

Transmitter setting range [°F] [min]

-58 °F

Transmitter type

Integrated

Type designation

MBT 5560-0101-0200-10-415
