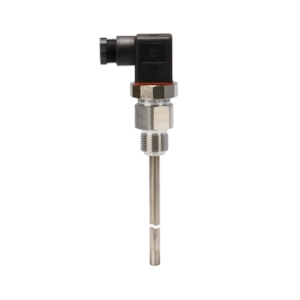

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5310, 94 mm - 106 mm, G,1/2 - C/N 097U0334

Gross weight

0.209 Kilogram

Net weight

0.202 Kilogram

Volume

0.349 Liter

EAN

5715162984543

Type

MBT 5310

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

G

Contains batteries

No

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in] [max]

4.17 in

Insertion length [in] [min]

3.76 in

Insertion length [mm] [max]

106 mm

Insertion length [mm] [min]

94 mm

Insertion type

Variable

Number of terminals [pcs]

2 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.31 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

7e8c0ff3-1e7a-4680-b92c-bfbffbb08416

SCIP dossier product name

MBT 3310/5310

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

2 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 5310-10-106-800

Wires [pcs]

2 pc
