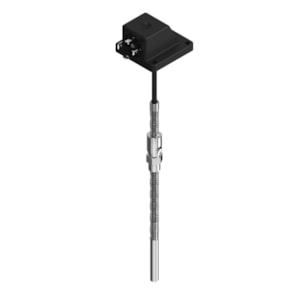

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5310, 300 mm, Bayonet coupling,12x1 - C/N 084Z2098

Gross weight

0.234 Kilogram

Net weight

0.225 Kilogram

Volume

0.84 Liter

EAN

5702428415224

Type

MBT 5310

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

150 °C

Ambient temperature max. [°F]

302 °F

Cable length [in]

91 in

Cable length [m]

2.3 m

Cable tempr. range [°C] [max]

150 °C

Cable tempr. range [°C] [min]

-40 °C

Cable tempr. range [°F] [max]

302 °F

Cable tempr. range [°F] [min]

-40 °F

Cable type

Polyolefine, screened

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection type

Bayonet coupling

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Cable

Electrical connection size

4 wire

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

11.8 in

Insertion length [mm]

300 mm

Insertion type

Variable

Number of terminals [pcs]

2 pc

Output signal

Ohm

Packing format

Multi pack

Process connection material

Stainless steel

Process connection notes

Bayonet coupling

Process connection size

12x1

Process connection standard

ISO 965

Process connection type

M

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

7e8c0ff3-1e7a-4680-b92c-bfbffbb08416

SCIP dossier product name

MBT 3310/5310

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

2 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT5310-30-300-3402-0230

Wires [pcs]

2 pc
