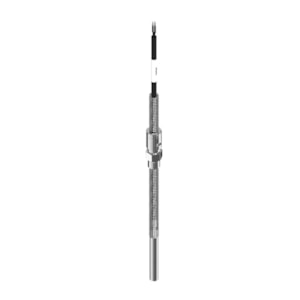

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5310, 300 mm, M,12x1 - C/N 084Z2321

Gross weight

0.117 Kilogram

Net weight

0.112 Kilogram

Volume

0.624 Liter

EAN

5702428899130

Type

MBT 5310

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

200 °C

Ambient temperature max. [°F]

392 °F

Cable length [in]

59 in

Cable length [m]

1.5 m

Cable tempr. range [°C] [max]

150 °C

Cable tempr. range [°C] [min]

-40 °C

Cable tempr. range [°F] [max]

302 °F

Cable tempr. range [°F] [min]

-40 °F

Cable type

Polyolefine, screened

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection type

M

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Cable

Electrical connection size

4 wire

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

11.8 in

Insertion length [mm]

300 mm

Insertion type

Variable

Output signal

Ohm

Packing format

Multi pack

Process connection material

Stainless steel

Process connection size

12x1

Process connection standard

ISO 965

Process connection type

M

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

7e8c0ff3-1e7a-4680-b92c-bfbffbb08416

SCIP dossier product name

MBT 3310/5310

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

2 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-40 °F

Type designation

MBT5310-30-300-0402-0150

Wires [pcs]

4 pc
