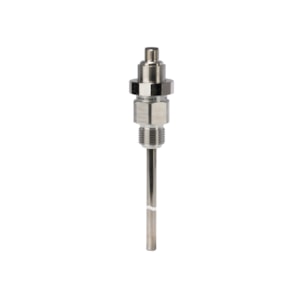

CẢM BIẾN NHIỆT ĐỌ O DANFOSS MBT 5310, 240 mm, G,1/4 - C/N 097U0215

Mã sản phẩm: 097U0215

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỌ O DANFOSS MBT 5310, 240 mm, G,1/4 - C/N 097U0215

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
Cable length [in]	98 in
Cable length [m]	2.5 m
Cable type	Polyolefine, screened
CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	Stainless steel
Connection type	G
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Cable
Electrical connection size	2 wire
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
In scope of WEEE	Yes
Insertion length [in]	9.4 in
Insertion length [mm]	240 mm
Insertion type	Variable
Number of terminals [pcs]	2 pc
Output signal	Ohm
Packing format	Multi pack
Process connection material	Stainless steel
Process connection size	1/4
Process connection standard	ISO 228-1-A
Process connection type	G
Protection tube diameter [in]	0.315 in
Protection tube diameter [mm]	8 mm
Protection tube material	AISI 316
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	7e8c0ff3-1e7a-4680-b92c-bfbffbb08416
SCIP dossier product name	MBT 3310/5310
Sensor elem. resistance [Ohm]	1000 Ohm
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Fixed
Temperature range [°C] [max]	125 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	257 °F
Temperature range [°F] [min]	-40 °F
Type designation	MBT 5310-20-240-0602-0250
Wires [pcs]	2 pc
