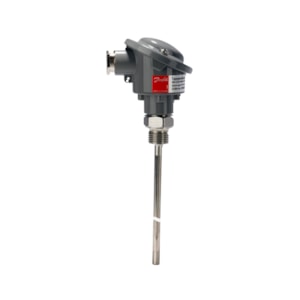

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5252, 100 mm, G,3/4 - C/N 097U0258

Gross weight

0.46 Kilogram

Net weight

0.433 Kilogram

Volume

1.056 Liter

EAN

5715162502464

Type

MBT 5252

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection standard

ISO 228

Connection type

G

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Type B

Electrical connection size

Pg 16

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

3.94 in

Insertion length [mm]

100 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

3/4

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.394 in

Protection tube diameter [mm]

10 mm

Protection tube material

AISI 316 TI

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

ab5a5d0b-78ac-4b3e-a6f6-bc20d26a29a6

SCIP dossier product name

MBT 3252/5252

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Supply voltage [V] DC [max]

30 V

Supply voltage [V] DC [min]

8 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

150 °C

Transmitter setting range [°C] [min]

-50 °C

Transmitter setting range [°F] [max]

302 °F

Transmitter setting range [°F] [min]

-58 °F

Transmitter type

Standard EEx

Type designation

MBT 5252-0010-0100-0300-L415

Wires [pcs]

2 pc
