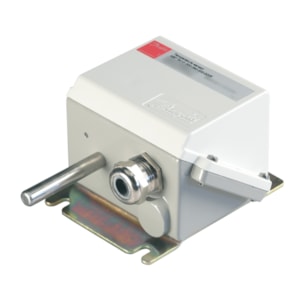

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5410, Pt - C/N 084Z4368

Gross weight

0.006 Kilogram

Net weight

0.005 Kilogram

Volume

0.06 Liter

EAN

5702423206254

Type

MBT 5410

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

Cable type

Silicone

CE evaluated

Yes

China RoHS compliance

Out of scope

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Cable

Electrical connection size

2 wire

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Protection tube diameter [in]

0.236 in

Protection tube diameter [mm]

6 mm

Quantity per packing format

50 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element tolerance

EN60751 Class B

Sensor element type

Pt

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Wires [pcs]

2 pc
