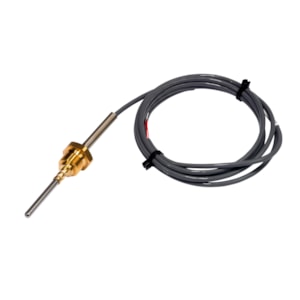

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5253, 65 mm, G,1/2 - C/N 084Z2072

Gross weight

0.254 Kilogram

Net weight

0.244 Kilogram

Volume

0.665 Liter

EAN

5702423295432

Type

MBT 5253

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

100 °C

Ambient temperature max. [°F]

212 °F

Cable length [in]

110 in

Cable length [m]

2.8 m

Cable tempr. range [°C] [max]

200 °C

Cable tempr. range [°C] [min]

-80 °C

Cable tempr. range [°F] [max]

392 °F

Cable tempr. range [°F] [min]

-112 °F

Cable type

Teflon

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Brass

Connection type

G

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

2.56 in

Insertion length [mm]

65 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Brass

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.236 in

Protection tube diameter [mm]

6 mm

Protection tube material

AISI 316

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

6deb3861-ee27-426b-8819-ccb3342cc6d1

SCIP dossier product name

MBT 5253

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

250 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

482 °F

Temperature range [°F] [min]

-58 °F

Type designation

00 MBT 5253-721-0065-C3000-; 01 028-00-0000

Wires [pcs]

2 pc
