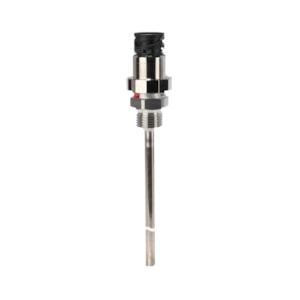

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5250, 50 mm, M,14x1.5 - C/N 084Z2465

Mã sản phẩm: 084Z2465

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5250, 50 mm, M,14x1.5 - C/N 084Z2465

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	Stainless steel
Connection type	M
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Bayonet
Electrical connection size	4 pin
Electrical connection standard	DIN 72585
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
In scope of WEEE	Yes
Insertion length [in]	1.97 in
Insertion length [mm]	50 mm
Number of terminals [pcs]	4 pc
Output signal	Ohm
Packing format	Multi pack
Process connection material	Stainless steel
Process connection size	14x1.5
Process connection standard	ISO 965
Process connection type	M
Protection tube diameter [in]	0.315 in
Protection tube diameter [mm]	8 mm
Protection tube material	AISI 316 TI
Quantity per packing format	21 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	1741c763-fa54-4cb9-973c-52e51e4079b9
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Exchangeable
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type designation	MBT 5250-0000-050-4C0
Wires [pcs]	4 pc
