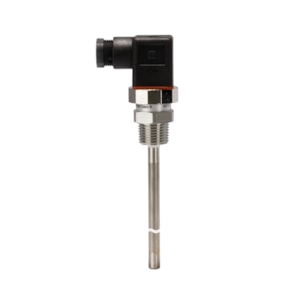

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5250, 100 mm, NPT,1/2-14 - C/N 084Z2188

Gross weight

0.157 Kilogram

Net weight

0.153 Kilogram

Volume

0.28 Liter

EAN

5702428457163

Type

MBT 5250

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection standard

ANSI/ASME B1.20

Connection type

NPT

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

3.94 in

Insertion length [mm]

100 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2-14

Process connection standard

ANSI/ASME B1.20.1

Process connection type

NPT

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

1741c763-fa54-4cb9-973c-52e51e4079b9

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 5250-0100-100-230

Wires [pcs]

2 pc
