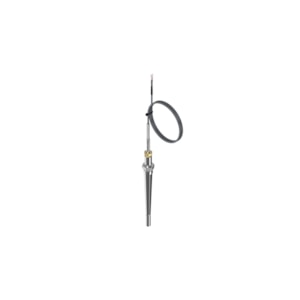

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5116, 100 mm, G,3/4, ANSI/ASME B1.20.1 - C/N 097U0305

Gross weight

0.534 Kilogram

Net weight

0.237 Kilogram

Volume

1.209 Liter

EAN

5715162715109

Type

MBT 5116

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

75 °C

Ambient temperature max. [°F]

167 °F

Cable length [in]

591 in

Cable length [m]

15 m

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

Contains batteries

No

Electrical conn. comments

Flying leads

Electrical connection

2 wire

Electrical connection size

3 pin

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Insertion length [in]

3.94 in

Insertion length [mm]

100 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

AISI 316 Ti

Process connection size

3/4

Process connection standard

ANSI/ASME B1.20.1

Process connection type

G

Protection tube diameter [in] [max]

0.945 in

Protection tube diameter [in] [min]

0.551 in

Protection tube diameter [mm] [max]

24 mm

Protection tube diameter [mm] [min]

14 mm

Protection tube material

AISI 316 TI

Quantity per packing format

9 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

2 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [max]

600 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

1112 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 5116-C221-100-100-1500

Wires [pcs]

2 pc
