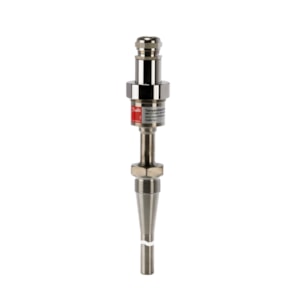

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5116, 200 mm, G,3/4, ISO 228-1-A - C/N 084Z2366

Gross weight

0.794 Kilogram

Net weight

0.775 Kilogram

Volume

0.541 Liter

EAN

5702428924290

Type

MBT 5116

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

75 °C

Ambient temperature max. [°F]

167 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Slim-line

Electrical connection size

Pg 13.5

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Extension length [in]

1.97 in

Extension length [mm]

50 mm

In scope of WEEE

Yes

Insertion length [in]

7.9 in

Insertion length [mm]

200 mm

Insertion type

Fixed

Number of terminals [pcs]

4 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

3/4

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in] [max]

0.945 in

Protection tube diameter [in] [min]

0.551 in

Protection tube diameter [mm] [max]

24 mm

Protection tube diameter [mm] [min]

14 mm

Protection tube material

AISI 316 TI

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

2 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [max]

600 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

1112 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 5116-S301-200-11-0000

Wires [pcs]

2 pc
