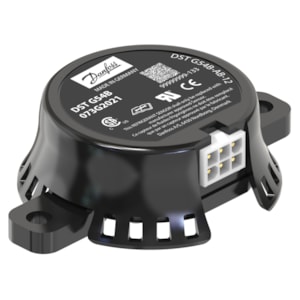

CẢM BIẾN KHÍ DANFOSS DST G54B, R454B - C/N 073G2042

Mã sản phẩm: 073G2042

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN KHÍ DANFOSS DST G54B, R454B - C/N 073G2042

Product details

Alarm reset [LFL hysteresis %]	2,5
Alarm reset Relay	5 minutes
Alarm threshold [LFL %]	12
CE evaluated	Yes
China RoHS compliance	Out of scope
Communication configuration	Customer Relay
Contains batteries	No
Electrical connection	Mini Mate-N-Lok
Electrical connection size	6 pin
Electrical connection standard	EN 60529
Enclosure design	Round Ø6 black
Enclosure rating IP	IP54
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Flame rating	UL 94 V-0
Housing material	PA66 25% Glass fiber
In scope of WEEE	No
International Article Number	5715162907320
Modbus termination	None
Mounting interface	2 brackets 180 dgr
Operating temperature [°C] [max]	80 °C
Operating temperature [°C] [min]	-40 °C
Operating temperature [°F] [max]	175 °F
Operating temperature [°F] [min]	-40 °F
Output signal	Dual Relay
Packing format	Industrial pack
Pin 1	+ supply
Pin 2	- common
Pin 3	Relay NO
Pin 4	Relay NC 24V AC
Pin 5	K2 pole
Pin 6	Relay NO 24V AC
Pressure range [bar] [max]	1.2 bar
Pressure range [bar] [min]	0.7 bar
Pressure range [psi] [max]	17.4 psi
Pressure range [psi] [min]	10.15 psi
Quantity per packing format	80 pc
REACH Candidate List substances	No
Recovery time [min]	<5
Refrigerants	R454B
Rel. Humidity conditions	0 - 100
Response time [S]	<15
Specification key	DST G54B-B3-12-2AAB-LC006-I
Supply current max. [mA]	300 mA
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
UL evaluated	Yes
