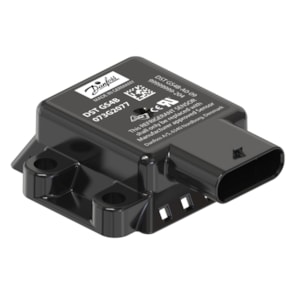

CẢM BIẾN KHÍ DANFOSS DST GS4B, R454B - C/N 073G2077

Gross weight

39.1 Gram

Net weight

30.26 Gram

EAN

5715162986387

Type

DST GS4B

Product group

Sensors

Product Name Description

Gas sensor

Alarm reset [LFL hysteresis %]

2,5

Alarm reset Modbus

5 seconds

Alarm threshold [LFL %]

9

Approval

C UL US UL Recognized; CE

CE evaluated

Yes

China RoHS compliance

Out of scope

Communication configuration

Customer Modbus

Contains batteries

No

Electrical connection

MCON

Electrical connection size

5 pin

Electrical connection standard

EN 60529

Enclosure design

Square black

Enclosure rating IP

IP66

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flame rating

UL 94 V-0

Housing material

PA66 25% Glass fiber

In scope of WEEE

No

International Article Number

5715162986387

Modbus termination

120 Ohm

Mounting interface

1 bracket 0 dgr

Operating temperature [°C] [max]

80 °C

Operating temperature [°C] [min]

-40 °C

Operating temperature [°F] [max]

175 °F

Operating temperature [°F] [min]

-40 °F

Output signal

Modbus

Packing format

Industrial pack

Pin 1

+ supply

Pin 2

Modbus A

Pin 3

Modbus B

Pin 4

- common

Pin 5

Not connected

Pressure range [bar] [max]

1.2 bar

Pressure range [bar] [min]

0.67 bar

Pressure range [psi] [max]

17.4 psi

Pressure range [psi] [min]

9.72 psi

Quantity per packing format

36 pc

REACH Candidate List substances

No

Recovery time [min]

<5

Refrigerants

R454B

Rel. Humidity conditions

0 - 100

Response time [S]

<15

Specification key

DST GS4B-A0-09-0ABE-LE002-I

Supply current max. [mA]

300 mA

Supply voltage [V] DC

5 V

UL evaluated

Yes
