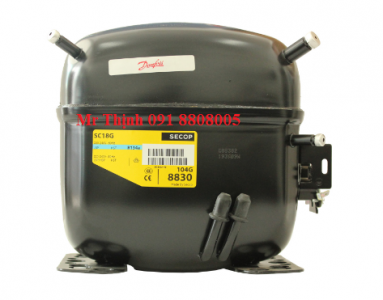

MÁY NÉN DANFOSS SC18G - C/N 195B0145

CHARACTERISTIC

VALUE

TYPE CODE

SC

NET WEIGHT

14.48 Kg

APPLICATION ENERGY LEVEL

Universal compressor

APPLICATIONS

HBP; LBP; MBP

APPROVAL STANDARDS

CE EN 60335-2-34 with Annex AA

AUXILIARY WINDING RESISTANCE (START WINDING) FOR SINGLE-PHASE COMPRESSORS ALT [OHM]

13.7

BASE PLATE TYPE

Universal

BRAND TECHNIQUE

Reciprocating compressor

CAPACITY CONTROL

Fixed speed

CAPACITY OF CAPACITOR B

80 uF

COLOUR

Black

CONFIGURATION CODE

Single

CUT IN CURRENT HST [A]

20.4

DISCHARGE CONNECTION ANGLE [°]

37

DISCHARGE CONNECTION COMMENTS

Al-cap

DISCHARGE CONNECTION DIAMETER [MM]

6.2

DISCHARGE CONNECTION HEIGHT [MM]

110

DISCHARGE CONNECTION MATERIAL

Cu-plated steel

DRAWING NUMBER

8264

ECONOMIZER

No

EMBALAGEM INDIVIDUAL

Single pack code number

FREE GAS VOLUME [CM3]

1460

FREQUENCY [HZ]

50/60

GROSS WEIGHT

14.48 Kg

HEIGHT FROM BASEPLATE [MM]

213

HIGH VALUE OF NOMINAL VOLTAGE AT 50HZ [V]

230

HIGH VALUE OF NOMINAL VOLTAGE AT 60HZ [V]

230

HIGH VALUE OF VOLTAGE RANGE AT 50HZ [V]

254

HIGH VALUE OF VOLTAGE RANGE AT 60HZ [V]

254

LRA HST [A]

20.4

LOW VALUE OF NOMINAL VOLTAGE AT 50HZ [V]

208

LOW VALUE OF NOMINAL VOLTAGE AT 60HZ [V]

220

LOW VALUE OF VOLTAGE RANGE AT 50HZ [V]

187

LOW VALUE OF VOLTAGE RANGE AT 60HZ [V]

198

MAIN WINDING RESISTANCE FOR SINGLE-PHASE COMPRESSORS [OHM]

3.7

MODEL NUMBER

SC18G

MOTOR TYPE

CSIR

NO. OF PHASES (COMPRESSOR)

1

NOMINAL COOLING CAPACITY 60 KBTU/H

6.06

NOMINAL COOLING CAPACITY AT 60HZ

1.8

OIL CHARGE [L]

550

OIL COOLER CONNECTION COMMENTS

Rubber cap

OIL COOLER CONNECTION DIAMETER [MM]

6.2

OIL COOLER CONNECTION MATERIAL

Copper

OIL QUANTITY [CM3]

550

OIL TYPE

POE

PACKING FORMAT

Single pack

PACKING QUANTITY

1

PHASE

1

PROCESS CONNECTION ANGLE [°]

37

PROCESS CONNECTION COMMENTS

Al-cap

PROCESS CONNECTION DIAMETER [MM]

6.2

PROCESS CONNECTION MATERIAL

Cu-plated steel

RLA

3.9 A

REFRIGERANT

R134a

REFRIGERANT CHARGE [KG] [MAX]

1.3

ROTATIONAL SPEED AT 50HZ [RPM]

2900

ROTATIONAL SPEED AT 60HZ [RPM]

3500

SEGMENT USAGE

Refrigeration LT; Refrigeration MT

SPEED PLATFORM

Fixed-speed

START CAPACITOR CAPACITANCE

80

SUCTION CONNECTION ANGLE [°]

37

SUCTION CONNECTION COMMENTS

Al-cap

SUCTION CONNECTION DIAMETER [MM]

10.2

SUCTION CONNECTION HEIGHT [MM]

193

SUCTION CONNECTION MATERIAL

Cu-plated steel

SWEPT VOLUME [CM3]

17.69

TECHNOLOGY

Reciprocating

TOTAL HEIGHT [MM]

219

TYPE DESIGNATION

Compressor

VOLTAGE 50HZ [V]

220

VOLTAGE 50HZ [V] [MAX]

240

VOLTAGE 60HZ [V]

220

VOLTAGE 60HZ [V] [MAX]

240

WINDING TEMPERATURE SHORT TERM [°C] [MAX]

135

WINDING TEMPERATURE STAT [°C] [MAX]

125

• COMPRESSOR

104G8830

• COMPRESSOR DESCRIPTION

SC18G

• CORD RELIEF

103N1004

• CORD RELIEF DESCRIPTION

CORD RELIEF SC EU/UL

• COVER

103N2009

• COVER DESCRIPTION

COVER SC-220V

• MOUNTING ACCESSORIES

118-1917

• MOUNTING ACCESSORIES DESCRIPTION

MOUNTING ACCESSORIES

• RELAY

117U6019

• RELAY DESCRIPTION

Starting Relay SC

• STARTING CAPACITOR

117U5017

• STARTING CAPACITOR DESCRIPTION

START CAPACITOR 80µF, 220V - SC
