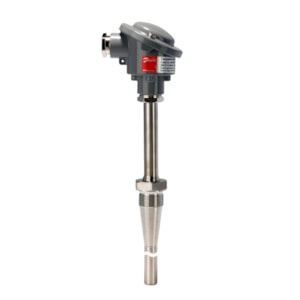

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5113, 300 mm, G,3/4, ISO 228-1-A - C/N 097U0306

Gross weight

1.02 Kilogram

Net weight

1.01 Kilogram

Volume

1.813 Liter

EAN

5715162733202

Type

MBT 5113

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

Contains batteries

No

Electrical connection

Type B

Electrical connection size

M16 x 1.5

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Extension length [in]

3.94 in

Extension length [mm]

100 mm

Insertion length [in]

11.8 in

Insertion length [mm]

300 mm

Insertion type

Fixed

Number of terminals [pcs]

2 pc

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

AISI 316 Ti

Process connection size

3/4

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in] [max]

0.945 in

Protection tube diameter [in] [min]

0.551 in

Protection tube diameter [mm] [max]

24 mm

Protection tube diameter [mm] [min]

14 mm

Protection tube material

AISI 316 TI

Quantity per packing format

6 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a

Sensor element standard

EN 60584-2

Sensor element tolerance

Class 2

Sensor Insert

Exchangeable

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [min]

8 V

Temperature range [°C] [max]

800 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

1472 °F

Temperature range [°F] [min]

-58 °F

Thermocouple

1 x NiCr-Ni, Type K

Thermocouple design std.

EN 61515

Thermocouple tolerance

EN 60584-2 Class 2

Transmitter setting range [°C] [max]

600 °C

Transmitter setting range [°C] [min]

0 °C

Transmitter setting range [°F] [max]

1112 °F

Transmitter setting range [°F] [min]

32 °F

Transmitter type

Galv. isolated

Type designation

MBT 5113-B002-300-10-H160

Wires [pcs]

2 pc
