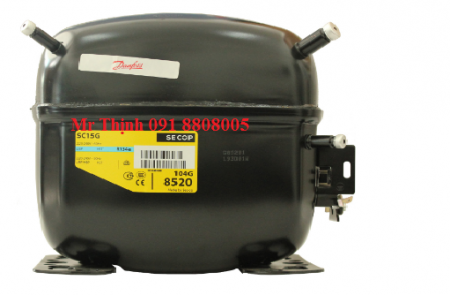

MÁY NÉN DANFOSS SC15G - C/N 195B0053

CHARACTERISTIC

VALUE

Type

SC

Net weight

13.20 Kg

Application energy level

Universal compressor

Applications

HBP; LBP; MBP

Approval standards

CE

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm]

13.7

Base plate type

Universal

Capacity of capacitor B

80 uF

Cut in current HST [A]

14.8

Cut in current LST [A]

19.9

Discharge connection angle [°]

37

Discharge connection comments

Al-cap

Discharge connection diameter [mm]

6.2

Discharge connection material

Cu-plated steel

Drawing number

8258

Free gas volume [cm3]

1410

Gross weight

13.20 Kg

High value of voltage range at 50Hz [V]

254

High value of voltage range at 60Hz [V]

254

LRA HST [A]

14.8

LRA LST [A]

15.5

Low value of voltage range at 50Hz [V]

187

Low value of voltage range at 60Hz [V]

198

Main winding resistance for single-phase compressors [Ohm]

5

Model number

SC15G

Motor type

CSIR

No. of phases (compressor)

1

Oil charge [cm3]

550

Oil type

POE

Process connection angle [°]

37

Process connection comments

Al-cap

Process connection diameter [mm]

6.2

Process connection material

Cu-plated steel

Refrigerant

R134a

Refrigerant charge [kg] [Max]

1.3

Suction connection angle [°]

37

Suction connection comments

Al-cap

Suction connection diameter [mm]

10.2

Swept volume [cm3]

15.28

Type designation

Compressor

Voltage 50Hz [V]

220

Voltage 50Hz [V] [Max]

240

Voltage 60Hz [V]

220

Voltage 60Hz [V] [Max]

240

Winding temperature short term [°C] [Max]

135

Winding temperature stat [°C] [Max]

125

• Bolt joint compressor 16 mm

118-1917

• Bolt joint compressor 16 mm Description

MOUNTING ACCESSORIES

• Bolt joint quantities 16 mm

118-1918

• Bolt joint quantities 16 mm Description

Bolt joint

• Cord relief

103N1004

• Cord relief Description

Cord relief SC

• Cover electrics

103N2009

• Cover electrics Description

Cover SC 220V

• Snap-on

118-1919

• Snap-on Description

Snap-on

• Starting capacitor

117U5017

• Starting capacitor Description

Start capacitor 80 µF

• Starting relay HST

117U6005

• Starting relay HST Description

Starting Relay SC
