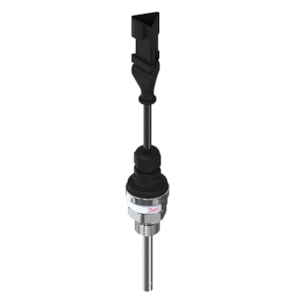

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3560, 68 mm, UNF,3/4-16 - C/N 084Z4170

Gross weight

0.181 Kilogram

Net weight

0.137 Kilogram

Volume

0.777 Liter

EAN

5702428881531

Type

MBT 3560

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

Cable length [in]

3.94 in

Cable length [m]

0.1 m

Cable tempr. range [°C] [max]

150 °C

Cable tempr. range [°C] [min]

-40 °C

Cable tempr. range [°F] [max]

302 °F

Cable tempr. range [°F] [min]

-40 °F

Cable type

Polyolefine, screened

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection type

UNF

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Deutsch DT04

Electrical connection size

3 pin

Electrical connection standard

EN 60947-5-2

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

2.68 in

Insertion length [mm]

68 mm

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

3/4-16

Process connection standard

ISO 228-1-A

Process connection type

UNF

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

Quantity per packing format

9 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

8127e7d9-3431-4421-a02a-bab746bc2e4f

SCIP dossier product name

Sensor MBT 3560

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element tolerance

< ± 1% FS

Sensor element type

Pt

Sensor Insert

Fixed

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

10 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

150 °C

Transmitter setting range [°C] [min]

-40 °C

Transmitter setting range [°F] [max]

302 °F

Transmitter setting range [°F] [min]

-40 °F

Transmitter type

Integrated

Type designation

MBT 3560-0000-0068-GA-815

Wires [pcs]

3 pc
