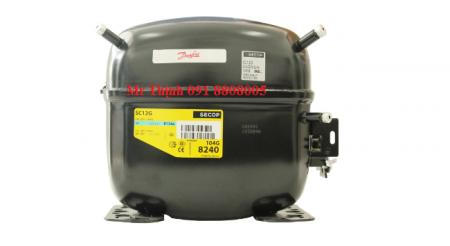

MÁY NÉN DANFOSS SC12G - C/N 195B0050

CHARACTERISTIC

VALUE

Type

SC12G

Weight

13.09 Kg

Application energy level

MBP C.

Approval

UL 984/CSA-C22.2

Bolt joint for one compressor, 16 mm

118-1917

Bolt joint in quantities, 16 mm

118-1918

CE marking

CE

Cord relief

103N1004

Cover, electrical components

103N2008

Cut in current HST [A]

18,4 A

Discharge connector material description

Cu-plated steel

Displacement [cm3]

12,87 cm3

Application (LBP/MBP/HBP)

MBP

Locked Rotor Amps HST [A]

18,4 A

Max. short term wind. temp. [°C]

135 °C

Max stationary wind. temp. [°C]

125 °C

Motor type

CSIR

Number of phases

1

Oil quantity [cm3]

550 cm3

Oil type

POE

Pack format

Industrial pack

Process connector, material description

Cu-plated steel

Quantity per pack format

80 PC

Primary refrigerant

R134a

Max. refrigerant charge

1,30 kg

Resistance, auxiliary winding [Ohm]

15,30 Ohm

Resistance, main winding [Ohm]

4,30 Ohm

Start Capacitor

117U5017

Start Capacitor capacitatance [uF]

80 uF

Starting relay HST

117U6011

Suction connector, material description

Cu-plated steel

Type designation

SC12G

Voltage 60Hz nominal [V]

208-230 V

Weight of compressor [kg]

13,00 kg
