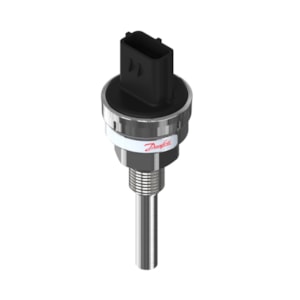

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3560, 50 mm, M,14x1.5 - C/N 084Z4230

Gross weight

0.121 Kilogram

Net weight

0.07 Kilogram

Volume

0.591 Liter

EAN

5702428679510

Type

MBT 3560

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

M

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

AMP EconoSeal

Electrical connection size

3 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

1.97 in

Insertion length [mm]

50 mm

Insertion type

Fixed

Output signal

Ratio metric

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

14x1.5

Process connection standard

ISO 228-1-A

Process connection type

M

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

Quantity per packing format

13 pc

Ratiometric of Vsupply [%] [max]

95 %

Ratiometric of Vsupply [%] [min]

5 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

8127e7d9-3431-4421-a02a-bab746bc2e4f

SCIP dossier product name

Sensor MBT 3560

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element tolerance

< ± 1% FS

Sensor element type

Pt

Sensor Insert

Fixed

Supply voltage [V] DC [max]

8 V

Supply voltage [V] DC [min]

4.75 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

150 °C

Transmitter setting range [°C] [min]

-50 °C

Transmitter setting range [°F] [max]

302 °F

Transmitter setting range [°F] [min]

-58 °F

Transmitter type

Integrated

Type designation

MBT 3560-0100-0050-4B-415
