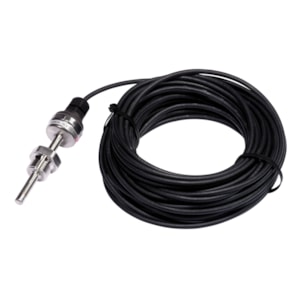

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3560, 50 mm, NPT,1/2-14 - C/N 084Z4158

Gross weight

0.219 Kilogram

Net weight

0.207 Kilogram

Volume

1.009 Liter

EAN

5702428832274

Type

MBT 3560

Product group

Sensors

Product Name Description

Temperature transmitter

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

Cable length [in]

79 in

Cable length [m]

2 m

Cable type

Polyolefine, screened

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection standard

ANSI/ASME B1.20

Connection type

NPT

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Screened 2 m

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Extension length [in]

1.3 in

Extension length [mm]

33 mm

In scope of WEEE

Yes

Insertion length [in]

1.97 in

Insertion length [mm]

50 mm

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2-14

Process connection standard

ANSI/ASME B1.20.1

Process connection type

NPT

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 TI

Quantity per packing format

13 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

8127e7d9-3431-4421-a02a-bab746bc2e4f

SCIP dossier product name

Sensor MBT 3560

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element tolerance

< ± 1% FS

Sensor element type

Pt

Sensor Insert

Fixed

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

10 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

200 °C

Transmitter setting range [°C] [min]

-50 °C

Transmitter setting range [°F] [max]

392 °F

Transmitter setting range [°F] [min]

-58 °F

Transmitter type

Integrated

Type designation

MBT 3560-0001-0050-57-420
