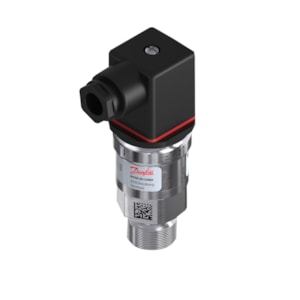

CẢM BIẾN ÁP SUẤT DANFOSS MBS 9300, -40 - 50 mbar, -0.58 - 0.73 psi - C/N 064G5255

Gross weight

0.203 Kilogram

Net weight

0.191 Kilogram

Volume

0.253 Liter

EAN

5702428551328

Type

MBS 9300

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 2

Acc. @ ref. Temp. ±FS typ. [%]

1 %

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-20 °C

Approval

CE; C UL US UL Recognized

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Angular connector

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Hysteresis and repeat.[±FS%]

0.1 %

In scope of WEEE

Yes

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-20 °C

Mount.pos. err. @ 180°[±FS%]

0.5 %

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

3.5 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection notes

A

Pressure connection size

1/2

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [mbar] [max]

50 mbar

Pressure range [mbar] [min]

-40 mbar

Pressure range [psi] [max]

0.73 psi

Pressure range [psi] [min]

-0.58 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Recommen. mounting torque [Nm]

25 nm

Reference temperature [°C]

25 °C

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 9300-Q411-A6GB08-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

TEB inside CTR ±FS [%]

2 %

UL evaluated

Yes
