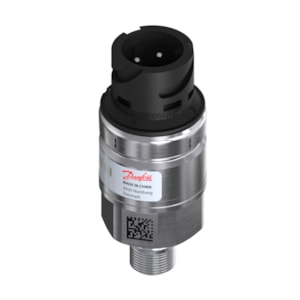

CẢM BIẾN ÁP SUẤT DANFOSS MBS 9200, -125 - 125 mbar, -1.81- 1.81 psi - C/N 064G5266

Gross weight

0.151 Kilogram

Net weight

0.125 Kilogram

Volume

0.253 Liter

EAN

5715162267998

Type

MBS 9200

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Acc. @ ref. Temp. ±FS typ. [%]

0.5 %

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; C UL US UL Recognized

Burst pressure [bar]

50 bar

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

105 °C

Compensated temp. range [°C] [min]

25 °C

Compensated temp. range [°F] [max]

221 °F

Compensated temp. range [°F] [min]

77 °F

Contains batteries

No

Durability P @ 10-90% FS

10000000

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

DIN 72585-A2-3.1-Au (REL)

Electrical conn. Male/Female

Male

Electrical connection

Bayonet

Electrical connection size

4 pin

Electrical connection standard

ISO 15170

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Fault Monitoring Demand

Yes

Hysteresis and repeat.[±FS%]

0.1 %

In scope of WEEE

Yes

Intrinsically safe

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-20 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Mount.pos. err. @ 180°[±FS%]

0.2 %

Non-linearity BFSL [±FS%]

0.2 %

Output lim. High Ratio [%]

93 %

Output lim. Low Ratio [%]

6 %

Output signal

Ratio metric

Overload pressure max. [bar]

0.8 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J1926-3

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [mbar] [max]

125 mbar

Pressure range [mbar] [min]

-125 mbar

Pressure range [psi] [max]

1.81 psi

Pressure range [psi] [min]

-1.81 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

20 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reference temperature [°C]

25 °C

Reference temperature [°F]

77 °F

Response time max. [ms]

1 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 9200-U1-16G2-BD07-1

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

4.5 V

TEB inside CTR ±FS [%]

2 %

TEB inside HTR ±FS [%]

3 %

TEB inside LTR ±FS [%]

2 %

UL evaluated

Yes
