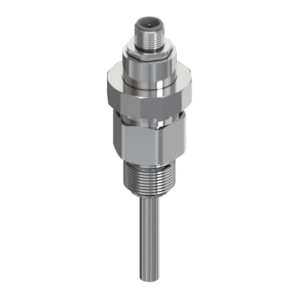

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3310, 165 mm - 180 mm, G,1/2 - C/N 097U0254

Gross weight

0.205 Kilogram

Net weight

0.18 Kilogram

Volume

0.147 Liter

EAN

5715162482582

Type

MBT 3310

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Stainless steel

Connection standard

IEC 947-5-2

Connection type

G

Contains batteries

No

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in] [max]

7.1 in

Insertion length [in] [min]

6.5 in

Insertion length [mm] [max]

180 mm

Insertion length [mm] [min]

165 mm

Insertion type

Variable

Number of terminals [pcs]

4 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

7e8c0ff3-1e7a-4680-b92c-bfbffbb08416

SCIP dossier product name

MBT 3310/5310

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 3310-00-180-B00

Wires [pcs]

4 pc
