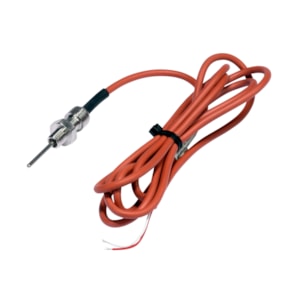

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 40 mm, M,10x1 - C/N 097U0314

Gross weight

0.071 Kilogram

Net weight

0.069 Kilogram

Volume

0.517 Liter

EAN

5715162899311

Type

MBT 3270

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

200 °C

Ambient temperature max. [°F]

392 °F

Cable length [in]

39.4 in

Cable length [m]

1 m

Cable tempr. range [°C] [max]

200 °C

Cable tempr. range [°C] [min]

-80 °C

Cable tempr. range [°F] [max]

392 °F

Cable tempr. range [°F] [min]

-112 °F

Cable type

Teflon

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection type

M

Contains batteries

No

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Insertion length [in]

1.57 in

Insertion length [mm]

40 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

10x1

Process connection standard

ISO 965

Process connection type

M

Protection tube diameter [in]

0.118 in

Protection tube diameter [mm]

3 mm

Protection tube material

AISI 316 TI

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

SCIP dossier product name

MBT 3270/5270

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

300 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

572 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 3270-22001-040-30003-100

Wires [pcs]

2 pc
