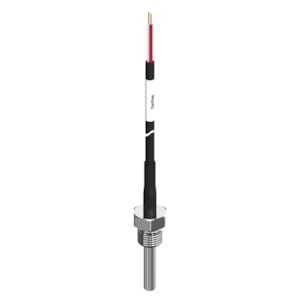

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 24 mm, G,1/4 - C/N 097U0242

Mã sản phẩm: 097U0242

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 24 mm, G,1/4 - C/N 097U0242

Product details

Cable length [in]	79 in
Cable length [m]	2 m
Cable tempr. range [°C] [max]	200 °C
Cable tempr. range [°C] [min]	-60 °C
Cable tempr. range [°F] [max]	392 °F
Cable tempr. range [°F] [min]	-76 °F
Cable type	Silicone
CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	Brass
Connection standard	ISO 228
Connection type	G
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Flying leads
Electrical connection size	2 wire
Electrical connection standard	NONE
Enclosure rating IP	IP54
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
In scope of WEEE	Yes
Insertion length [in]	0.945 in
Insertion length [mm]	24 mm
Insertion type	Fixed
Output signal	Ohm
Packing format	Multi pack
Process connection size	1/4
Process connection type	G
Protection tube diameter [in]	0.256 in
Protection tube diameter [mm]	6.5 mm
Protection tube material	BRASS
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
SCIP dossier product name	MBT 3270/5270
Sensor elem. resistance [Ohm]	10000 Ohm
Sensor element [pc]	1 pc
Sensor element type	NTC
Sensor Insert	Fixed
Temperature range [°F] [max]	257 °F
Temperature range [°F] [min]	-40 °F
Type designation	MBT 3270-07790-024-00001-200
Wires [pcs]	2 pc
