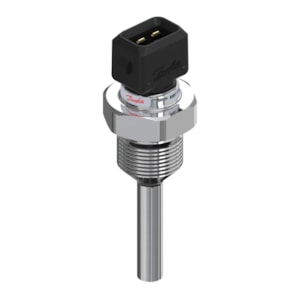

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 45 mm, G,3/8 - C/N 097U0142

Mã sản phẩm: 097U0142

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 45 mm, G,3/8 - C/N 097U0142

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	AISI 303
Connection standard	ISO 228
Connection type	G
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	AMP Junior Power Timer Yellow
Electrical connection size	2 pin
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
In scope of WEEE	Yes
Insertion length [in]	1.77 in
Insertion length [mm]	45 mm
Insertion type	Fixed
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	3/8
Process connection standard	ISO 228-1-A
Process connection type	G
Protection tube diameter [in]	0.256 in
Protection tube diameter [mm]	6.5 mm
Protection tube material	AISI 303
Quantity per packing format	40 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
SCIP dossier product name	MBT 3270/5270
Sensor elem. resistance [Ohm]	10000 Ohm
Sensor element [pc]	1 pc
Sensor element type	NTC
Sensor Insert	Fixed
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
Type designation	MBT 3270-07422-045-10300-000
Wires [pcs]	2 pc
