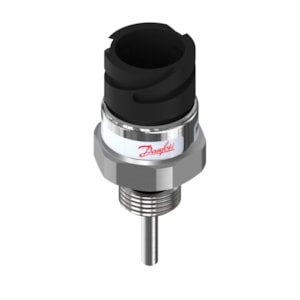

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 45 mm, M,16x1.5 - C/N 084Z2341

Mã sản phẩm: 084Z2341

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 45 mm, M,16x1.5 - C/N 084Z2341

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	AISI 316 Ti
Connection type	M
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. Male/Female	Male
Electrical connection	Bayonet
Electrical connection size	4 pin
Electrical connection standard	DIN 72585-1
Enclosure rating IP	IP54
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
In scope of WEEE	Yes
Insertion length [in]	1.77 in
Insertion length [mm]	45 mm
Insertion type	Fixed
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	16x1.5
Process connection standard	ISO 6149-2
Process connection type	M
Protection tube diameter [in]	0.165 in
Protection tube diameter [mm]	4.2 mm
Protection tube material	AISI 316 TI
Quantity per packing format	40 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
SCIP dossier product name	MBT 3270/5270
Sensor elem. resistance [Ohm]	2020 Ohm
Sensor element [pc]	1 pc
Sensor element tolerance	± 1%
Sensor element type	NTC
Sensor Insert	Fixed
Temperature range [°C] [max]	135 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	275 °F
Temperature range [°F] [min]	-40 °F
Type designation	MBT 3270-66182-045-50G00-000
Wires [pcs]	2 pc
