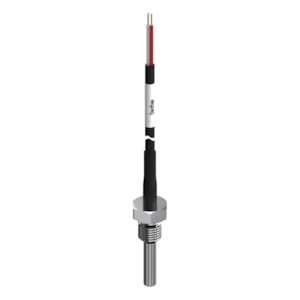

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 40 mm, M,12x1.5 - C/N 084Z2155

Gross weight

0.158 Kilogram

Net weight

0.15 Kilogram

Volume

0.36 Liter

EAN

5702428441216

Type

MBT 3270

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

100 °C

Ambient temperature max. [°F]

212 °F

Cable length [in]

157 in

Cable length [m]

4 m

Cable tempr. range [°C] [max]

100 °C

Cable tempr. range [°C] [min]

-40 °C

Cable tempr. range [°F] [max]

212 °F

Cable tempr. range [°F] [min]

-40 °F

Cable type

PVC

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316

Connection type

M

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

1.57 in

Insertion length [mm]

40 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

AISI 316

Process connection size

12x1.5

Process connection standard

ISO 965

Process connection type

M

Protection tube diameter [in]

0.256 in

Protection tube diameter [mm]

6.5 mm

Protection tube material

AISI 316

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

SCIP dossier product name

MBT 3270/5270

Sensor elem. resistance [Ohm]

100 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

105 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

221 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 3270-40002-040-I0005-400

Wires [pcs]

2 pc
