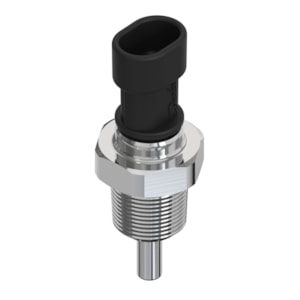

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 28 mm, NPT,3/8-18 - C/N 097U0338

Gross weight

0.046 Kilogram

Net weight

0.044 Kilogram

Volume

0.03 Liter

EAN

5715255008941

Type

MBT 3270

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316L

Connection type

NPT

Electrical conn. comments

Integrated

Electrical connection

Delphi Packard GT 150

Electrical connection size

2 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Insertion length [in]

1.1 in

Insertion length [mm]

28 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Industrial pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

3/8-18

Process connection type

NPT

Protection tube diameter [in]

0.217 in

Protection tube diameter [mm]

5.5 mm

Protection tube material

AISI 316L

Quantity per packing format

40 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

SCIP dossier product name

MBT 3270/5270

Sensor elem. resistance [Ohm]

2252 Ohm

Sensor element [pc]

1 pc

Sensor element type

NTC

Sensor Insert

Fixed

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 3270-09991-028-90900-000

Wires [pcs]

2 pc
