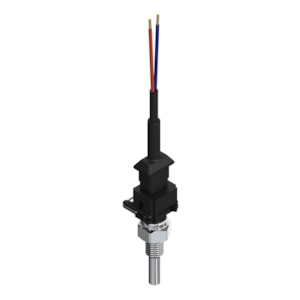

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 32 mm, M,10x1 - C/N 097U0009

Gross weight

0.279 Kilogram

Net weight

0.244 Kilogram

Volume

0.27 Liter

EAN

5702428532266

Type

MBT 3270

Product group

Sensors

Product Name Description

Temperature sensor

Cable length [in]

236 in

Cable length [m]

6 m

Cable tempr. range [°C]

90 °C

Cable tempr. range [°F]

194 °F

Cable type

PVC

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection type

M

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

1.26 in

Insertion length [mm]

32 mm

Output signal

Ohm

Packing format

Industrial pack

Process connection size

10x1

Process connection type

M

Protection tube diameter [in]

0.256 in

Protection tube diameter [mm]

6.5 mm

Protection tube material

AISI 316

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

SCIP dossier product name

MBT 3270/5270

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN60751

Sensor element tolerance

1%

Sensor element type

Pt

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 3270-02002-032-30305-600

Wires [pcs]

2 pc
