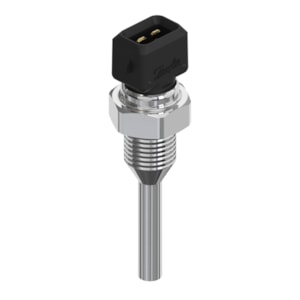

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 45 mm, R,1/4 - C/N 084Z2488

Gross weight

0.032 Kilogram

Net weight

0.031 Kilogram

Volume

0.027 Liter

EAN

5702428006378

Type

MBT 3270

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection type

R

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

AMP Junior Power Timer

Electrical connection size

2 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

1.77 in

Insertion length [mm]

45 mm

Output signal

Ohm

Packing format

Multi pack

Process connection size

1/4

Process connection standard

ISO 228-1

Process connection type

G

Protection tube diameter [in]

0.236 in

Protection tube diameter [mm]

6 mm

Protection tube material

AISI 303

Quantity per packing format

40 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

SCIP dossier product name

MBT 3270/5270

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 3270-02002-045-00300

Wires [pcs]

2 pc
