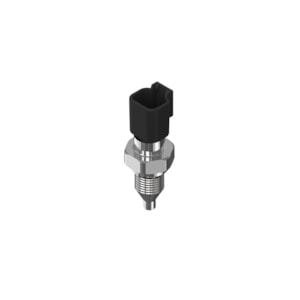

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 24 mm, M,14x1.5 - C/N 084Z2422

Gross weight

0.049 Kilogram

Net weight

0.048 Kilogram

Volume

0.041 Liter

EAN

5702428962612

Type

MBT 3270

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

AISI 316 Ti

Connection type

M

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Flying leads

Electrical connection

Deutsch DT04

Electrical connection size

2 pin

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

0.945 in

Insertion length [mm]

24 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

AISI 316 Ti

Process connection size

14x1.5

Process connection standard

ISO 965

Process connection type

M

Protection tube diameter [in]

0.236 in

Protection tube diameter [mm]

6 mm

Protection tube material

AISI 316 TI

Quantity per packing format

40 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

SCIP dossier product name

MBT 3270/5270

Sensor elem. resistance [Ohm]

2000 Ohm

Sensor element [pc]

1 pc

Sensor element tolerance

± 1%

Sensor element type

NTC

Sensor Insert

Fixed

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 3270-061A2-024-K0C00-000

Wires [pcs]

4 pc
