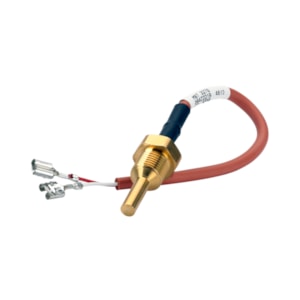

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 24 mm, G,1/4 - C/N 084Z2092

Gross weight

0.088 Kilogram

Net weight

0.085 Kilogram

Volume

0.175 Liter

EAN

5702423297214

Type

MBT 3270

Product group

Sensors

Product Name Description

Temperature sensor

Ambient temperature max. [°C]

200 °C

Ambient temperature max. [°F]

392 °F

Cable length [in]

79 in

Cable length [m]

2 m

Cable tempr. range [°C] [max]

200 °C

Cable tempr. range [°C] [min]

-60 °C

Cable tempr. range [°F] [max]

392 °F

Cable tempr. range [°F] [min]

-76 °F

Cable type

Silicone

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Brass

Connection standard

ISO 228

Connection type

G

Contains batteries

No

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE

Yes

Insertion length [in]

0.945 in

Insertion length [mm]

24 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Brass

Process connection size

1/4

Process connection standard

ISO 228-1-A

Process connection type

G

Protection tube diameter [in]

0.256 in

Protection tube diameter [mm]

6.5 mm

Protection tube material

BRASS

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

SCIP dossier product name

MBT 3270/5270

Sensor elem. resistance [Ohm]

1000 Ohm

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Type designation

MBT 3270-02000-024-00001-200

Wires [pcs]

2 pc
