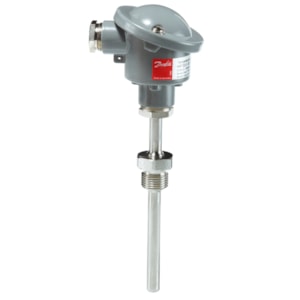

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3252, 50 mm, M,1/4-18 - C/N 084Z2485

Mã sản phẩm: 084Z2485

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3252, 50 mm, M,1/4-18 - C/N 084Z2485

Product details

Ambient temperature max. [°C]	90 °C
Ambient temperature max. [°F]	194 °F
CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	Stainless steel
Connection standard	ISO 228
Connection type	M
Contains batteries	No
Electrical connection	Type B
Electrical connection size	Pg 16
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Extension length [in]	1.97 in
Extension length [mm]	50 mm
Insertion length [in]	1.97 in
Insertion length [mm]	50 mm
Insertion type	Fixed
Number of terminals [pcs]	4 pc
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	1/4-18
Process connection type	NPTF
Protection tube diameter [in]	0.315 in
Protection tube diameter [mm]	8 mm
Protection tube material	AISI 316 TI
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	ab5a5d0b-78ac-4b3e-a6f6-bc20d26a29a6
SCIP dossier product name	MBT 3252/5252
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class A
Sensor element type	Pt
Sensor Insert	Exchangeable
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type designation	MBT 3252-0001-0050-0931-0000
Wires [pcs]	4 pc
