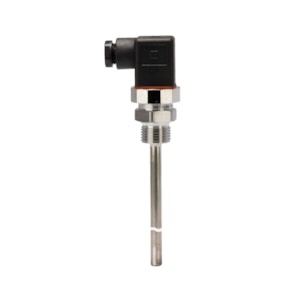

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3250, 50 mm, G,1/2 - C/N 097U0236

Mã sản phẩm: 097U0236

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3250, 50 mm, G,1/2 - C/N 097U0236

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	Stainless steel
Connection standard	ISO 228
Connection type	G
Contains batteries	No
Electrical conn. Male/Female	Male and Female
Electrical connection	Angular connector
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
In scope of WEEE	Yes
Insertion length [in]	1.97 in
Insertion length [mm]	50 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	1/2
Process connection standard	ISO 228-1-A
Process connection type	G
Protection tube diameter [in]	0.315 in
Protection tube diameter [mm]	8 mm
Protection tube material	AISI 316 TI
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	1741c763-fa54-4cb9-973c-52e51e4079b9
Sensor elem. resistance [Ohm]	10000 Ohm
Sensor element [pc]	1 pc
Sensor element tolerance	±0.1°C
Sensor element type	NTC
Sensor Insert	Exchangeable
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-40 °F
Type designation	Sensor MBT 3250-9900-050-129
Wires [pcs]	2 pc
