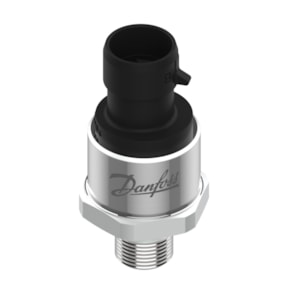

CẢM BIẾN ÁP SUẤT DANFOSS DST P140, 0- 6 bar, 0- 87 psi - C/N 075G4259

Mã sản phẩm: 075G4259

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN ÁP SUẤT DANFOSS DST P140, 0- 6 bar, 0- 87 psi - C/N 075G4259

Product details

+ output	Pin C
+ supply	Pin B
- common	Pin A
Ambient temperature range [°C] [max]	125 °C
Ambient temperature range [°C] [min]	-40 °C
Approval	C UL US UL Recognized; CE
Compensated temp. range [°C] [max]	135 °C
Compensated temp. range [°C] [min]	-40 °C
Electrical connection	Round Packard Metri-Pack
Electrical connection size	3 pin
Electrical connection standard	150.2 SERIES
Electrical Connector Color	Black
Enclosure rating IP	IP69K
High Clipping Level	92
Housing material	304L
Identical product	075G1327
International Article Number	5715255095606
Low Clipping level	8
Medium temperature range [°C] [max]	135 °C
Medium temperature range [°C] [min]	-40 °C
Output signal	Ratio metric
Overload pressure max. [bar]	24 bar
Overload pressure max. [psi]	348 psi
Packing format	Industrial pack
Pressure connection HEX [mm]	27 mm
Pressure connection size	1/4-A
Pressure connection standard	ISO 1179-2
Pressure connection type	G
Pressure Male/Female	Male
Pressure range [bar] [max]	6 bar
Pressure range [bar] [min]	0 bar
Pressure range [psi] [max]	87 psi
Pressure range [psi] [min]	0 psi
Pressure reference	Gauge (relative)
Pulse-snubber	No
Quantity per packing format	60 pc
Ratiometric of Vsupply [%] [max]	90 %
Ratiometric of Vsupply [%] [min]	10 %
Response time max. [ms]	2 ms
Specification key	DST P110-1816-C2GB04-1
Supply voltage [V] DC	5 V
TEB inside CTR ±FS [%]	3 %
Wetted part material	304L/316L
