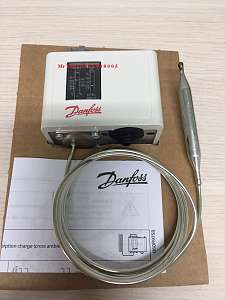

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP81 - C/N 060L112566

CHARACTERISTIC

VALUE

TYPE CODE

KP81

WEIGHT

0.372 Kg

AMBIENT TEMP.

-40 - 65 °C

AMBIENT TEMP.

-40 - 150 °F

APPROVAL

BV, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2, CCC, CE, DNV, EAC, GL, LVD, PZH, RINA, RMRS, RoHS China

CAP. TUBE LENGTH

78 3/4 in

CAP. TUBE LENGTH

2.000 mm

CHARGE TYPE

Adsorption

CONTACT FUNCTION

SPDT

CONTACT RATING

AC1=16 A, 400 V

CONTACT RATING

AC15=10 A, 400 V

CONTACT RATING

AC3=16 A, 400 V

CONTACT RATING

DC13=12 W, 220 V

CONTACT RATING

LR=112 A, 400 V

DIFF. MAX. RANGE SETTING

7,0 - 23,0 K

DIFF. MAX. RANGE SETTING

7,0 - 23,0 °C

DIFF. MIN. RANGE SETTING

6,0 - 20,0 K

DIFF. MIN. RANGE SETTING

6,0 - 20,0 °C

DIFF. TYPE

Adjustable

EAN NO.

5702423148646

ELECTR. CONN. COMMENTS

Rubber cable gland

ELECTR. CONN. SIZE

6-14 mm

ELECTR. SPEC. STANDARD

EN 60947-5

ENCLOSURE RATING

IP30

NEMA RATING (~)

1

GLOW LAMP

No

MAX. SENSOR TEMP.

200 °C

MAX. SENSOR TEMP.

392,0 °F

PACK FORMAT

Multi pack

PROD. DESCRIPTION

Temperature Control

PROD. GROUP

Switches and thermostats

PROD. NAME

Thermostat

PACK QTY.

14 PC

RESET

AUTO

SENSOR SIZE (Ø X L)

3/8 x 3 3/8 in

SENSOR SIZE (Ø X L)

9.5 x 85 mm

SENSOR TYPE

Remote Sensor

TEMP. RANGE

80 - 150 °C

TEMP. RANGE

176 - 302 °F

UL APPROVAL FILE NAME

E31024

UL APPROVAL FILE NAME

MH27572
