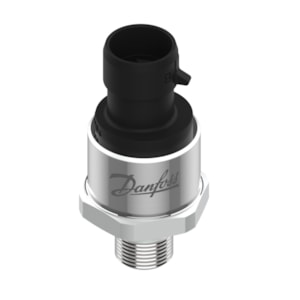

CẢM BIẾN ÁP SUẤT DANFOSS DST P140, 0- 4 bar, 0 - 58 psi - C/N 075G4065

Gross weight

0.071 Kilogram

Net weight

0.059 Kilogram

Volume

0.16 Liter

EAN

5702424231026

Type

DST P140

Product group

Sensors

Product Name Description

Pressure transmitter

+ output

Pin C

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-20 °C

Approval

C UL US UL Recognized; CE

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-20 °C

Contain batteries

No

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Electrical Connector Color

Black

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

Housing material

304L

Identical product

075G1088

In scope of WEEE

Yes

International Article Number

5702424231026

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-20 °C

Output signal

Ratio metric

Overload pressure max. [bar]

16 bar

Overload pressure max. [psi]

232 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-A

Pressure connection standard

ISO 1179-2

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

4 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

58 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Absolute

Pulse-snubber

No

Quantity per packing format

60 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P140-1626-C2GB04-2

Supply voltage [V] DC

5 V

TEB inside CTR ±FS [%]

3 %

Wetted part material

304L/316L
