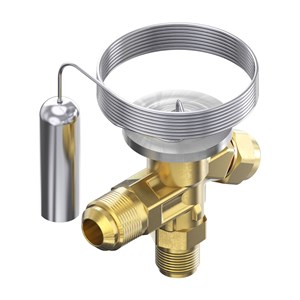

VAN TIẾT LƯU DANFOSS TE 12, R404A/R507A – C/N 067B3347

CHARACTERISTIC

VALUE

TYPE CODE

TEA 20-8

WEIGHT

2.29 Kg

APPROVAL

EAC

BODY MAT.

Cast iron GGG40.3

MAX. BULB TEMP. [ºF]

212 °F

MAX. BULB TEMP. [ºC]

100 °C

CAP. TUBE

192,0 in

CAP. TUBE

5.000 mm

CAT.

Art. 3, par. 3

CONTENTS

GASKET IS NON ASBESTOS

CONN. SIZE

1/2 IN

CONN. TYPE

Weld flange

DIRECTION

Straightway

EAN NO.

5702422139416

M12 x 1.5

EQUAL. CONN. TYPE

M

Weld nipple 6.5 mm

FLOW DIR. INDICATOR

Embossed 1-way arrow

FLUID GROUP

I

MORE INFO.

GASKET IS NON ASBESTOS

MAX. TEST PRESSURE

28,5 bar

MAX. TEST PRESSURE

413 psig

MWP

19,0 bar

MWP

276 psig

PACK FORMAT

Single pack

PARTS INCL.

Weld nipple

PRESSURE EQ.

Externally equalized

DESCRIPT.

Thermostatic Expans. Valve

PRODUCT ACCESSORIES

Flanges

PROD. GROUP

Expansion valves

PROD. NAME

Thermostatic expansion valve

PACK QTY.

1 PC

RATED CAP. CONDITIONS [SI UNITS]

Subcooling=4K

RATED CAP. CONDITIONS [SI UNITS]

tcond=32 °C

RATED CAP. CONDITIONS [SI UNITS]

tevap=15 °C

RATED CAP. R717

28,0 kW

RATED CAP. R717

8,0 TR

REFRIGERANT

R717

SERVICEABLE

TXV spare parts

SUPERHEAT SETTING

Adjustable

TEMP. RANGE

-20 - 30 °C

TEMP. RANGE

-4 - 86 °F
