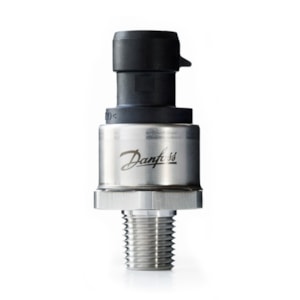

CẢM BIẾN ÁP SUẤT DANFOSS DST P140, 0 - 10.3 bar, 0 - 150 psi - C/N 075G4028

Gross weight

0.067 Kilogram

Net weight

0.055 Kilogram

Volume

0.086 Liter

EAN

5702428680295

Type

DST P140

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Approval

CE

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-40 °C

Contain batteries

No

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Electrical connection standard

150.2 SERIES

Electrical Connector Color

Black

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

Fault signal level

21.5

High Clipping Level

20.5

Housing material

304L

Identical product

075G1055

In scope of WEEE

Yes

International Article Number

5702428680295

Low Clipping level

3.8

Medium temperature range [°C] [max]

80 °C

Medium temperature range [°C] [min]

-20 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

41 bar

Overload pressure max. [psi]

600 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

NONE

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

10.3 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

150 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

60 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P140-6011-C2AC04-0

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

8 V

TEB inside CTR ±FS [%]

3 %

Wetted part material

304L/316L
