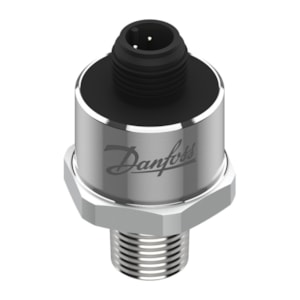

CẢM BIẾN ÁP SUẤT DANFOSS DST P140, -1 - 3 bar, -14.5 - 43.5 psi - C/N 075G1275

Gross weight

0.064 Kilogram

Net weight

0.055 Kilogram

Volume

0.086 Liter

EAN

5715255035695

Type

DST P140

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 1

- common

Pin 3

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Approval

C UL US UL Recognized; CE

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-40 °C

Contain batteries

No

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Electrical Connector Color

Black

Enclosure rating IP

IP67

High Clipping Level

20.5

Housing material

304L

Identical product

075G4219

International Article Number

5715255035695

Low Clipping level

3.8

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

15 bar

Overload pressure max. [psi]

217 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-A

Pressure connection standard

ISO 1179-2

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

3 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

43.5 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

Quantity per packing format

64 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P140-8531-A5GB04-1

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

8 V

TEB inside CTR ±FS [%]

3 %

Wetted part material

304L/316L
