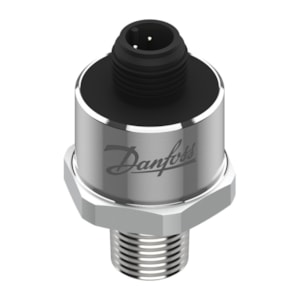

CẢM BIẾN ÁP SUẤT DANFOSS DST P10B, 0 - 13.8 bar, - 200 psi - C/N 075G1200

Gross weight

0.073 Kilogram

Net weight

0.062 Kilogram

Volume

0.079 Liter

EAN

5715162472767

Type

DST P10B

Product group

Sensors

Product Name Description

Pressure transmitter

+ supply

Pin 2

- common

Pin 3

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-40 °C

Approval

CE

Bitrate kBit/sec

125

BUS Pin High (+)

Pin 4

BUS Pin Low (-)

Pin 5

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-40 °C

Contain batteries

No

Electrical connection

M12 x 1

Electrical connection size

5 pin

Electrical connection standard

IEC 61076-2-101

Electrical Connector Color

Black

Enclosure rating IP

IP67

EU RoHS compliance

Yes

Fault signal level

32767

High Clipping Level

18841

Housing material

304L

Identical product

075G4159

International Article Number

5715162472767

Low Clipping level

-8192

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-40 °C

Node ID

127

Output signal

CANopen

Overload pressure max. [bar]

55.2 bar

Overload pressure max. [psi]

800 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

13.8 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

200 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

Quantity per packing format

64 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Shield Pin

Pin 1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

8 V

TEB inside CTR ±FS [%]

3 %

UL evaluated

Out of scope

Wetted part material

304L/316L

X-BUS Profil

0 - 200 psi & Fahrenheit​

X-BUS Profil version

1.0
