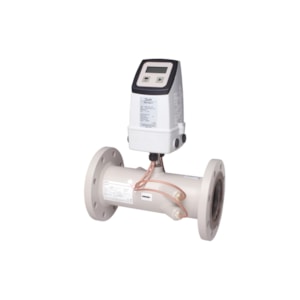

Đồng hồ đo năng lượng SONO 3500CT, qp [m³/h]: 120, Heating and cooling, mains unit, 2 pulse output - C/N 187F3530

Mã sản phẩm: 187F3530

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

Đồng hồ đo năng lượng SONO 3500CT, qp [m³/h]: 120, Heating and cooling, mains unit, 2 pulse output - C/N 187F3530

Product details

1 Primary battery SUM weight Kg	0.09
1 Primary battery weight Kg	0.09
Accuracy standard	Class 2 to EN1434
Ambient class	E2/M1
Ambient temperature [°C] [max]	55 °C
Ambient temperature [°C] [min]	-10 °C
Application	Heating and cooling
Approval authority	MID
Battery lifetime [Years]	6 yr
Battery qty	1
Battery type or Name	D-celle Lithium thionyl chloride (ER36415)
China RoHS compliance	Out of scope
Connection types	Flange / Compact version
Contain batteries	Yes
Description	Flow meter for utility applications
Display type	LCD
Dynamic range	1:100
EEE category	4 large equipment (any external dimension > 50 cm)
EU RoHS compliance	Out of scope
Flow measuring principle	Ultrasonic
In scope of WEEE	Yes
Integrated communication	2 pulse output
Label product	Yes
Media	Heating system according to VDI 2035
Pressure nominal [bar]	16 bar
Protection Class of the Coating	IP67
Pulse value volume [l/pulse]	2.5 l/pulse
qp [m³/h]	120 m³/h
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	bfa38ad6-dd6c-4807-a7ae-a69a7dd46c52
SCIP dossier product name	SONO 3500 CT
Storage temperature [°C] [Max]	85 °C
Storage temperature [°C] [Min]	-40 °C
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	115 V
Supply voltage type	mains unit
Weight per battery	6 g
