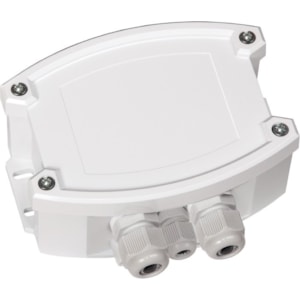

CẢM BIẾN ÁP SUẤT DANFOSS 7245T 2x500Pa & PT1000 - C/N 134B9400

CẢM BIẾN ÁP SUẤT DANFOSS 7245T 2x500Pa & PT1000 - C/N 134B9400

DUAL AIR PRESSURE SENSOR ±500PA Temperature drift: ±
0.1% per °C ⁄ °F
Zero point offset: ± 10 % of measuring range
Above- ⁄ below-pressure: max. ± 50 kPa / ± 200 inWC
Power: 24VAC (± 20%) <(><<)>0,2W / 15…36VDC
Operation temperature: –30...+70 °C / –22...+158 °F
Media temperature –20...+50 °C / –4...+122 °F
T2-IP65 plastic housing with two M16 cable glands one M12 for
temperature
Housing dimensions: 126 x 90 x 50 mm / 4.96 x 3.54 x 1.97 in
