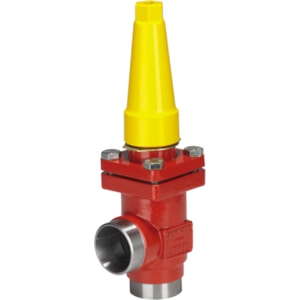

Van điều áp góc REG-SA 15 A - C/N 148B5204

Gross weight

2.022 Kilogram

Net weight

1.7 Kilogram

Volume

4.425 Liter

EAN

5702428473675

Type

REG-SA 15

Product group

Shut-off and regulating valves

Product Name Description

Hand operated regulating valve

Approval

CE; CRN; EAC; LLC CDC TYSK; UKCA

Body material

Steel

Brand

SVL Flexline

CE evaluated

Yes

China RoHS compliance

Out of scope

Colour Paint

Reddish brown

Connection material

Steel

Connection standard

ASME B 16.11

Contain batteries

No

Cv value [gal/min]

1.75 gal/min

Direction

Angleway

Equipment

Cap

EU RoHS compliance

Out of scope

Flow area [in2]

0.056 in²

Flow area [mm2]

36 mm²

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1; 2

Inlet connection size [in]

1/2 in

Inlet connection size [mm]

15 mm

Inlet connection type

Socket weld

Kv value [m³/h]

1.5 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Neck

Standard

Outlet connection size [in]

1/2 in

Outlet connection size [mm]

15 mm

Outlet connection type

Socket weld

Packing format

Single pack

Parts Program name

REG-SA / REG-SB

PED category

Art. 4, par. 3

Product accessories

SVL Flexline accessories

Product description

Hand Regulating Valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R290
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R600
R600a
R717
R744
R507A
R1234yf
R1234ze(E)
R125
R152a
R227ea
R236fa
R245fa
R32
R407H
R413A
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R512A
R513A
R513B
R515A
R515B
R516A
R170
R452C

Serviceable

SVL Flexline spare parts

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Valve version

Standard version
